Introduction#

Hinode is a JAXA solar observatory, built with NASA, the UK Space Agency, and ESA, which has been observing the Sun since 2006 [Kosugi et al., 2007].

This Python package downloads Hinode observations and represents them using named_arrays, a named tensor implementation with astropy.units.Quantity support. So far it supports the Level 1 images of the X-Ray Telescope (XRT) [Golub et al., 2007], in hinode.xrt, along with what a differential emission measure needs: the temperature response of each filter, hinode.xrt.temperature_response(), the visible light leaking into each pixel, hinode.xrt.Filtergram.leak, and the uncertainty of each pixel, hinode.xrt.Filtergram.uncertainty(). The pointing of each image is corrected with the co-alignment databases of SolarSoft, so that it lines up with AIA, hinode.xrt.Filtergram.coalignment.

Installation#

This package is published to PyPI and can be installed using pip.

pip install hinode

API Reference#

hinode

Download and analyze observations from the Hinode satellite.

Examples#

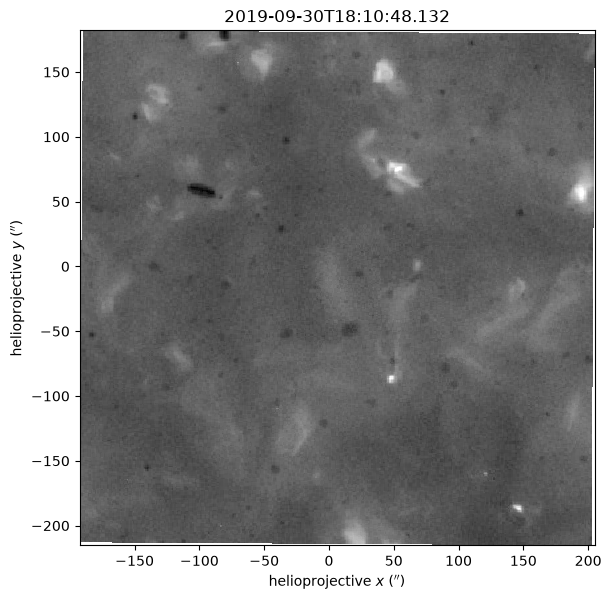

Load the XRT images taken through the Al_poly filter while the EUV Snapshot Imaging Spectrograph (ESIS) was observing the Sun on 2019 September 30, and display the last one.

import matplotlib.pyplot as plt
import astropy.units as u
import astropy.visualization
import named_arrays as na
import hinode

# Download the images and load them into memory
images = hinode.xrt.open(
    time_start="2019-09-30T18:06:11",
    time_stop="2019-09-30T18:11:01",
    filter="Al_poly",
)

# Select the last image
image = images[{images.axis_time: ~0}]

# Display the image
unit = image.inputs.position.x.unit
with astropy.visualization.quantity_support():
    fig, ax = plt.subplots(figsize=(6, 6), constrained_layout=True)
    na.plt.pcolormesh(
        image.inputs.position.x,
        image.inputs.position.y,
        C=image.outputs,
        ax=ax,
        cmap="gray",
        norm="asinh",
        vmin=0 * u.DN / u.s,
        vmax=100 * u.DN / u.s,
    )
    ax.set_aspect("equal")
    ax.set_title(image.inputs.time.ndarray)
    ax.set_xlabel(f"helioprojective $x$ ({unit:latex_inline})")
    ax.set_ylabel(f"helioprojective $y$ ({unit:latex_inline})")

Citation#

If you use hinode in your research, please cite it. The citation metadata is kept in CITATION.cff, which the “Cite this repository” button on the GitHub page can export as BibTeX or APA.

Every release of hinode is archived on Zenodo with its own DOI. The concept DOI, 10.5281/zenodo.23249959, always resolves to the latest version, and the Zenodo page lists the DOI of every version. Please include the version of hinode that you used, which is given by importlib.metadata.version("hinode"). The BibTeX entry below uses the concept DOI. To cite a specific version instead, replace doi with the DOI of that version.

@software{hinode,
  author = {Smart, Roy T.},
  title = {hinode},
  version = {X.Y.Z},
  doi = {10.5281/zenodo.23249959},
  url = {https://github.com/sun-data/hinode},
}
